How Does a Heat Pump Work? A Clear Answer for Homeowners

How does a heat pump work is one of the most common questions homeowners ask when exploring energy-efficient comfort systems — and for good reason. A heat pump doesn't burn fuel to create warmth. Instead, it moves existing heat from one place to another using a refrigerant cycle, making it one of the most efficient ways to heat and cool a home year-round.

Here's the short answer:

How a Heat Pump Works — Quick Summary

1. In cooling mode: The system absorbs heat from inside your home and transfers it outdoors, leaving cool air behind.
2. In heating mode: It reverses the process, pulling heat energy from outdoor air (even cold air) and moving it inside.
3. The refrigerant circulates through four key components — the evaporator, compressor, condenser, and expansion valve — changing between liquid and gas states to absorb and release heat.
4. A reversing valve is what allows the system to switch between heating and cooling with the flip of a thermostat setting.
5. The result: Up to 4.5 units of thermal energy delivered for every 1 unit of electricity consumed.

In simple terms, think of a heat pump as a highly efficient two-way thermal transport system. It doesn't generate heat — it relocates it. That one distinction is what makes heat pumps up to five times more energy-efficient than conventional boilers, and a smart choice for homeowners along the Crystal Coast and throughout coastal North Carolina.

In the sections below, we'll break down exactly how each part of the system works, what makes it effective even in cooler weather, and why it might be the right fit for your home.

What is a Heat Pump and How Does It Differ from a Furnace?

To understand Heat Pumps, it helps to look at how we traditionally stay warm. Most of us are used to furnaces, which create heat through combustion—burning natural gas, propane, or oil. This process is effective but inherently limited; you can never get more energy out of the fuel than what is stored within it.

A heat pump represents a total shift in philosophy. It focuses on heat transfer rather than heat generation. Even on a chilly April 2026 morning in New Bern, the outdoor air contains a surprising amount of thermal energy. A heat pump captures that existing thermal energy and "pumps" it into your living space.

Key Differences Between a Heat Pump and a Furnace:

• No Combustion: Heat pumps do not burn fossil fuels to create heat, which means no carbon monoxide concerns from the heating process and a significantly smaller carbon footprint.
• Two-in-One Functionality: A furnace only heats. A heat pump provides both high-efficiency heating and air conditioning in a single unit.
• Energy Multiplication: While a high-efficiency furnace might be 95% efficient, a heat pump can achieve a Coefficient of Performance (COP) of 3 to 5. This means for every 1 kWh of electricity used, it can move 3 to 5 kWh of heat into your home.
• Milder, Consistent Air: Furnaces often produce "blasts" of very hot air. Heat pumps typically provide a more consistent, even flow of air that many homeowners find more comfortable and less drying.

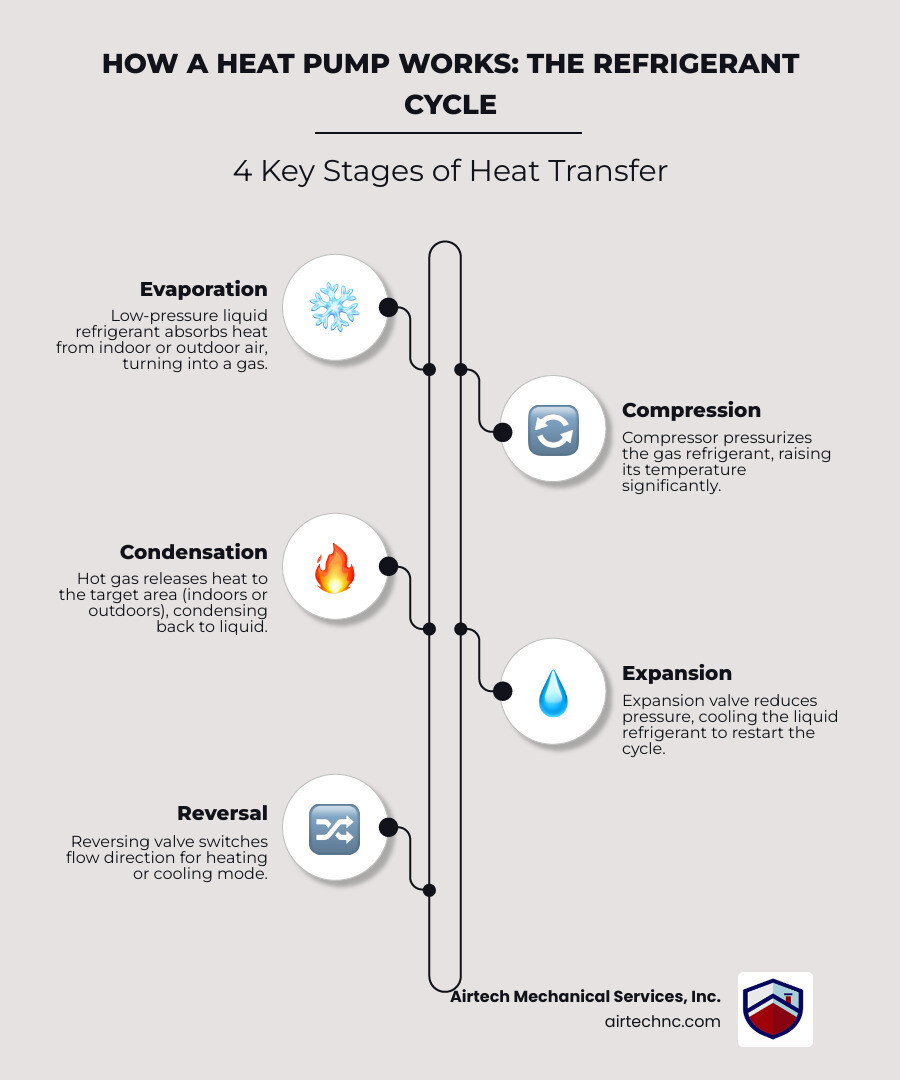

Understanding the Refrigerant Cycle: How Does a Heat Pump Work?

The "magic" behind the system lies in the vapor-compression cycle. This process relies on the physical properties of a specialized fluid called refrigerant. Refrigerant has an incredibly low boiling point, allowing it to change from a liquid to a gas even at very low temperatures.

When we look at how does a heat pump work, we are really looking at how the system manipulates the pressure and state of this refrigerant. By changing the pressure, the system can force heat to move against its natural inclination (which is to move from hot to cold).

This cycle involves "latent heat"—the energy absorbed or released when a substance changes phase (like liquid to gas). Moving this latent heat is far more efficient than simply heating up an electric coil, like a toaster. This is why professional Heat Pump Service is so vital; if the refrigerant levels or pressures are off, this delicate thermodynamic balance is disrupted.

Step-by-Step: How does a heat pump work in cooling mode?

In the summer months across the Crystal Coast, your heat pump acts exactly like a high-end air conditioner.

1. Absorption: The cold liquid refrigerant flows through the indoor evaporator coil. As warm indoor air is blown across this coil, the refrigerant absorbs the heat.
2. Evaporation: As it absorbs heat, the refrigerant evaporates into a low-pressure gas.
3. Compression: This gas travels to the outdoor unit, where the compressor squeezes it, dramatically increasing its temperature and pressure.
4. Rejection: The now-hot gas passes through the outdoor condenser coil. A fan blows outside air over the coil, and because the refrigerant is hotter than the outdoor air, the heat moves from the coil to the outside.
5. Expansion: The refrigerant, now a liquid again but still under high pressure, passes through an expansion valve. This valve drops the pressure quickly, cooling the refrigerant further so it can return indoors and start the process again.

During this process, the system also provides essential moisture removal. As warm air hits the cold indoor coil, humidity condenses into water droplets and is drained away. If you notice your home feels "sticky," it might be time to look into Heat Pump Repair to ensure your system is dehumidifying correctly.

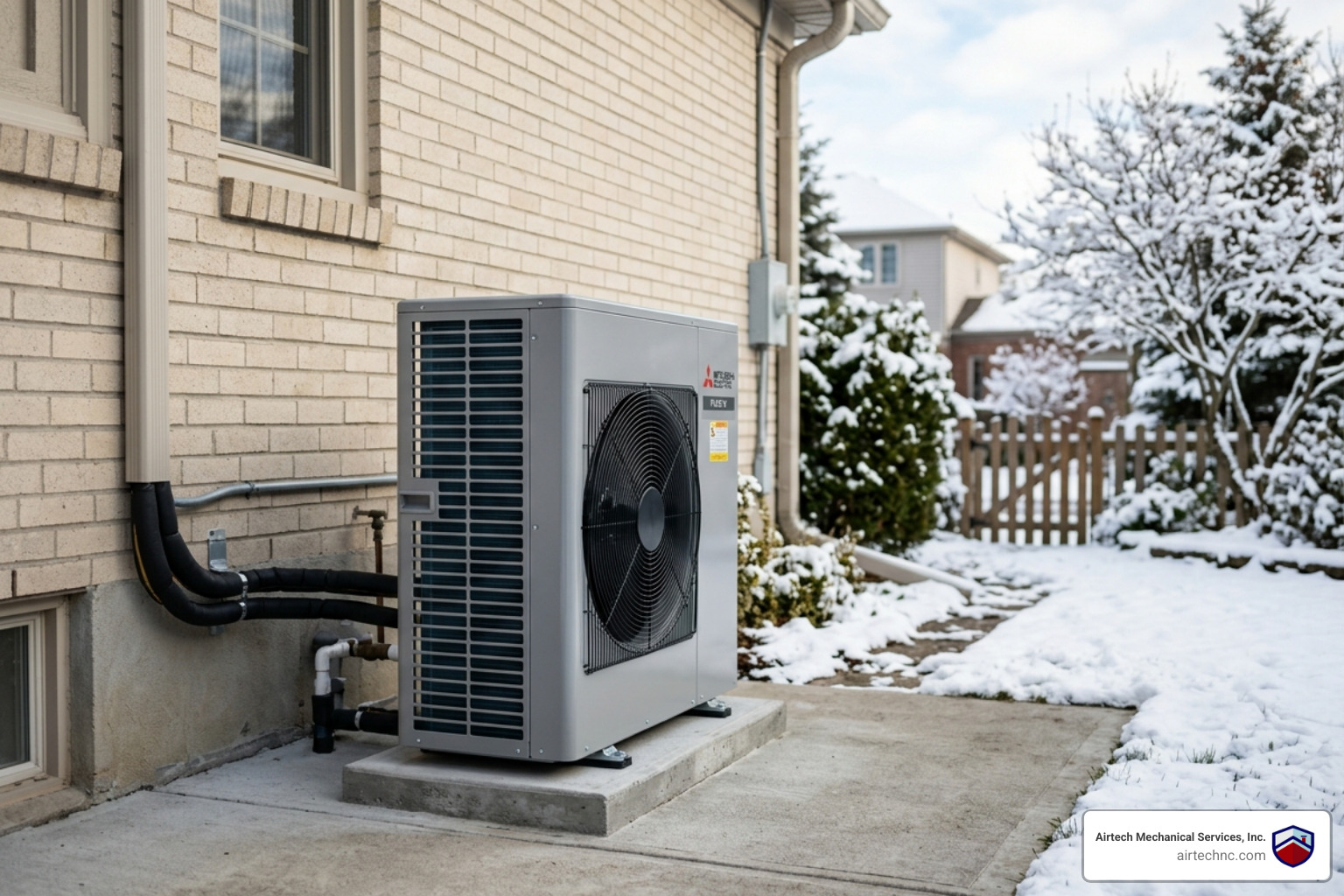

Winter Performance: How does a heat pump work in heating mode?

The defining feature of a heat pump is the reversing valve. This component allows the system to flip the refrigerant flow, essentially turning the "outside" into the "inside."

When you switch to heating, the outdoor coil becomes the evaporator and the indoor coil becomes the condenser. The refrigerant is sent outside at a temperature much colder than the outdoor air. Even at 35°F, the refrigerant is cold enough to absorb heat from the environment.

One common concern is the defrost cycle. Because the outdoor coil becomes very cold while absorbing heat, moisture in the air can freeze on the fins. Modern systems are designed to detect this and momentarily switch back to cooling mode—sending warm gas to the outdoor coil to melt the ice—while using backup heat strips to ensure you don't feel a cold draft inside.

The Essential Components of a Modern System

A heat pump is a precision-engineered machine. For it to operate at peak efficiency, every component must be in top shape. This is why we emphasize Heat Pump Maintenance at least twice a year—once before the cooling season and once before the heating season.

Efficiency Ratings and Environmental Benefits

When shopping for a new system, you'll see several acronyms. In April 2026, the industry standard focuses on "Version 2" ratings, which more accurately reflect real-world performance:

• SEER2 (Seasonal Energy Efficiency Ratio): Measures cooling efficiency. Higher numbers mean lower summer electricity bills.
• HSPF2 (Heating Seasonal Performance Factor): Measures heating efficiency over a season.
• COP (Coefficient of Performance): A snapshot of efficiency at a specific temperature.

The environmental benefits are staggering. In regions like the United States, 70% of homes could significantly reduce their carbon footprint by switching to a heat pump. Emissions savings compared to high-efficiency gas boilers average about 45% and can reach up to 80% in areas with "green" electricity grids.

Furthermore, the industry is moving toward more eco-friendly refrigerants. For instance, propane (R-290) has a Global Warming Potential (GWP) that is 7,000 times lower than some older refrigerants. By moving heat rather than burning fuel, you are choosing the most sustainable path for home comfort.

Suitability for Coastal North Carolina Homes

Here in New Bern, Morehead City, and the surrounding Crystal Coast, we live in a "mixed" climate. We have hot, humid summers and moderately cold winters. This is the "sweet spot" for heat pump technology.

Our coastal environment presents unique challenges, such as salt air and high humidity. Heat Pump Installation in these areas requires specialized knowledge to protect the unit from corrosion and ensure the system is sized correctly to handle the latent heat load (humidity).

Local Benefits of Heat Pumps:

• Superior Dehumidification: Heat pumps are excellent at pulling moisture out of the air, which is essential for preventing mold and keeping homes comfortable in Atlantic Beach or Emerald Isle.
• Flexible Options: For homes without ductwork, ductless mini-splits offer the same efficient heat pump technology for individual rooms.
• Dual Fuel Compatibility: For those who want extra peace of mind, we can install "hybrid" systems that use a heat pump most of the year but switch to a gas furnace on the rare nights when temperatures drop significantly.

Frequently Asked Questions about Heat Pump Mechanics

At what temperature does a heat pump become ineffective?

In the past, heat pumps struggled when temperatures dropped below 30°F. However, cold-climate technology has changed the game. Select modern heat pumps can now operate effectively down to -22°F. While efficiency does drop as it gets colder, these systems remain much more efficient than electric baseboard heaters even in extreme cold.

Does a heat pump bring outside air into the house?

No. This is a common misconception. A heat pump uses a closed-loop refrigerant cycle. It transfers heat energy, not the air itself. The air you breathe indoors is recirculated through your home's air filters, while the refrigerant travels in sealed copper lines between the indoor and outdoor units. This helps maintain better indoor air quality by keeping outdoor pollutants and allergens outside.

How long is the typical lifespan of a heat pump system?

A well-maintained heat pump typically lasts between 10 and 25 years. However, in coastal areas like Topsail Beach or Surf City, the lifespan can be on the shorter end of that range due to salt-air corrosion if the system isn't properly treated or maintained. Regular rinsing of the outdoor coils and professional tune-ups are the best ways to protect your investment.

Conclusion

Understanding how does a heat pump work helps you appreciate the incredible technology keeping your family comfortable. From the precision of the refrigerant cycle to the versatility of the reversing valve, these systems are the pinnacle of modern HVAC efficiency.
